Piratz Separator

Let's choose the Separator as the next widget. At first glance it may seem to be a simple widget to alter, but looking at its layout we find that the separator has an orientation, and its only component consists of Separator.separator with no orientation.

There is no proper way to make the vertical separator react correctly without a vertical component, so first of all let's improvise. There are 2 separator images in the images directory which should look like rope.

horizontal separator

vertical separator

Not using layout

Look closely at the vertical separator

Show/Hide Code 07pirate_separator.py

# both theme_create and theme_settings worked
style.theme_create( "yummy", parent="clam", settings={
#style.theme_settings('default', {
# start of theme extract
     'Separator.separator': {"element create":
          ('image', "separator",
           #('invalid', "separator-v"), ## uncomment when using 2nd state
           {'border':[3],'sticky': 'nsew'})} ## change from 3 to 2
# end of theme extract - don't forget to add comma at end when inserting
     })

fr1 = Frame(fr, height=250, width=250)
fr1.grid(column=1,row=0,sticky='nsew', padx=5, pady=5)
style.theme_use('yummy') # 'default'
widg = Separator(fr1,orient="horizontal")
widg.place(x=5, y=5, width=150)

widg1 = Separator(fr1,orient="vertical")
#widg1.state(['invalid']) ## uncomment when using 2nd state
widg1.place(x=75, y=50, height=150, width=8) #, width=5


root.mainloop()

Attempts using no layout

the relevant part of theme_create is:

'Separator.separator': {"element create":
   ('image', "separator",
   #('invalid', "separator-v"), ## uncomment when using 2nd state
   {'border':[3],'sticky': 'nsew'})} ## change from 3 to 2

The horizontal separator works as expected, but the vertical separator image is forced to react as the horizontal image. As done before use the place manager to display the widget and make the horizontal separator widg.place(x=5, y=5, width=150) then vertical separator has widg1.place(x=75, y=50, height=150, width=5) which gives the best looking widget, but it's not perfect.

We can improve the situation if we add a second state then the vertical separator improves considerably, but we require a call to this second state in the vertical mode from the program. First run the script as is, then uncomment the two highlighted lines, and change border sizes.

Think back to the scrollbar, the final solution was to have a grip which involved changing the layout to be able to include the new element. Also look at the scrollbar arrangement we had a horizontal layout that listed all its elements, and a vertical layout with its set of elements. When element create is invoked we need to distinguish between orientations, so if the element name has an orientation built into its name we just need 'Scrollbar.uparrow': {"element create": whereas we need "Vertical.Scrollbar.thumb": {"element create":.

Let's try this with separator.

'Horizontal.TSeparator': {'layout': [
    ('Horizontal.Separator.hseparator',{"sticky": "ew"},
    )]},

'Vertical.TSeparator': {'layout': [
    ('Vertical.Separator.vseparator',{"sticky": "ns"},
    )]},

'Separator.hseparator': {"element create":
    ('image', "separator",
     {'border':[3],'sticky': 'ew'})},

'Separator.vseparator': {"element create":
    ('image', "separator-v",
     {'border':[3],'sticky': 'ns'})}

That worked and gave us

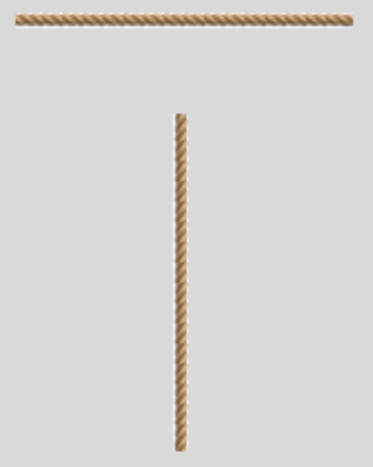

Using layout

See how the vertical separator now looks

If we now try using a common element name (separator).

'Horizontal.TSeparator': {'layout': [
    ('Horizontal.Separator.separator',{"sticky": "ew"},
    )]},

'Vertical.TSeparator': {'layout': [
    ('Vertical.Separator.separator',{"sticky": "ns"},
    )]},

'Horizontal.Separator.separator': {"element create":
    ('image', "separator",
     {'border':[3],'sticky': 'ew'})},

'Vertical.Separator.separator': {"element create":
    ('image', "separator-v",
     {'border':[3],'sticky': 'ns'})}

The results were exactly the same. Tkinter is pretty impressive.
